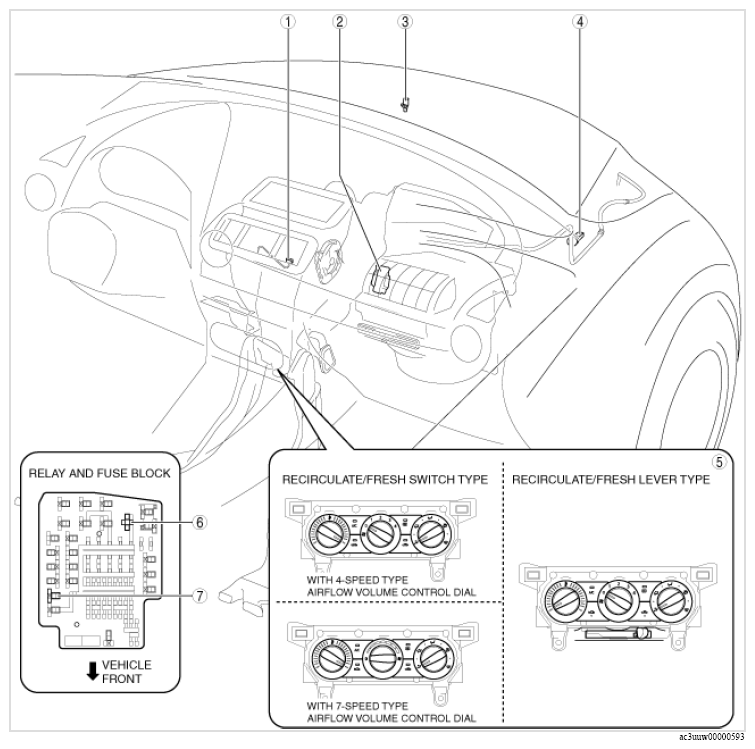

| 1 |
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]
.)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]
.) |
| 2 |
Air intake actuator (with air intake actuator)
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]
.)
(See
AIR INTAKE ACTUATOR INSPECTION (MANUAL A/C) .) |
| 3 |
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]
.)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]
.) |
| 4 |
Refrigerant pressure sensor
(See
REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (MANUAL A/C) .)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]
.) |
| 5 |
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]
.)
(See
CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY (MANUAL A/C) .)
(See CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]
.)
(See FAN SWITCH INSPECTION [MANUAL AIR CONDITIONER] .) |
| 6 |
Blower relay
(See RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
| 7 |
A/C relay
(See RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
