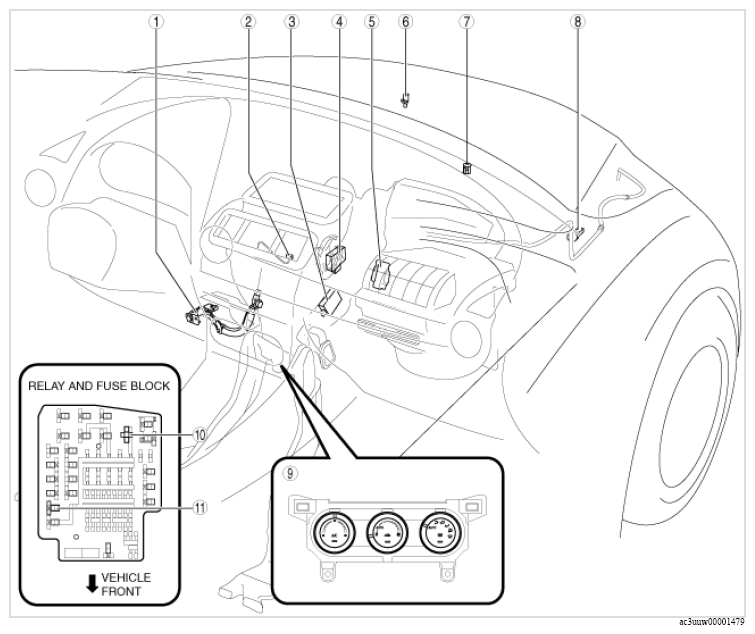

| 1 |
Passenger compartment temperature sensor
(See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 2 |
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 3 |
Air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 4 |
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 5 |
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 6 |
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 7 |
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 8 |
Refrigerant pressure sensor
(See
REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
(See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 9 |
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
(See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER] .) |
| 10 |
Blower relay
(See RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
| 11 |
A/C relay
(See RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
