Snap ring removal/installation note

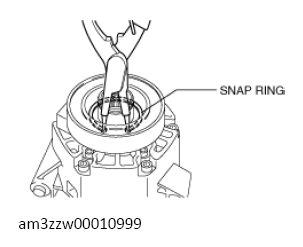

  1. Remove/install the snap ring using a snap ring pliers.
    G13150975Courtesy of MAZDA MOTORS CORP.
