A/C Compressor Pulley Removal Note

NOTE:
  • Wrap protective tape around the tabs of the SST (49 0839 425C) so that the A/C compressor pulley is not scratched.

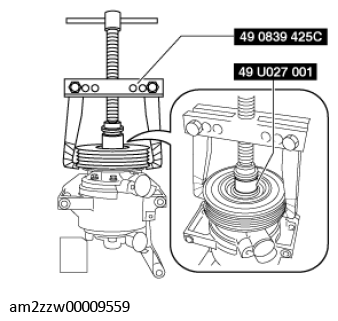

  1. Remove the A/C compressor pulley using the SSTs (49 0839 425C, 49 U027 001).
    G11431324Courtesy of MAZDA MOTORS CORP.
    CAUTION:

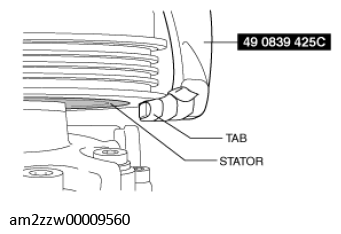

    • If the A/C compressor pulley is removed with the SST (49 0839 425C) tabs attached to the stator, the stator could be damaged. When using the SST (49 0839 425C), make sure the tabs are not attached.
    G11431325Courtesy of MAZDA MOTORS CORP.
