Caliper (Rear) Disassembly/Assembly

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated in the figure.

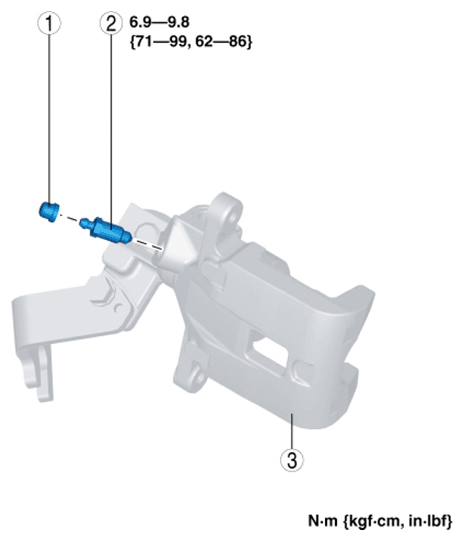

    Fig 1: Rear Caliper Component With Torque Specifications
    G10909700Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Bleeder cap
    2 Bleeder screw
    3 Caliper body
  2. Assemble in the reverse order of removal.
