Inspection Procedure
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Follow the steps below to inspect the SST (49 H066 002)

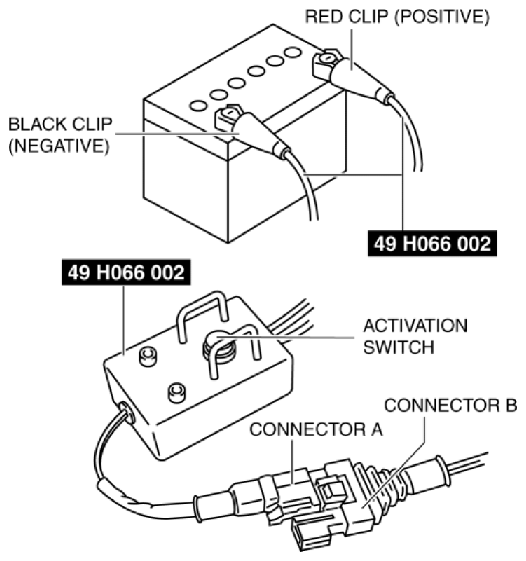

.Fig 1: Connecting Power Supply Red Clip To Positive Battery Terminal And Black Clip To Negative Battery Terminal
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the chart, replace the SST (49 H066 002) because it has a malfunction.
WARNING:- Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or pre-tensioner seat belt to accidentally operate (deploy).
CAUTION:- Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.
Step Inspection procedure Light condition Green Red 1 Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal. On Off 2 Connect connectors A and B. Off On 3 Press the activation switch. On Off
