Airflow Mode Main Link Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft.

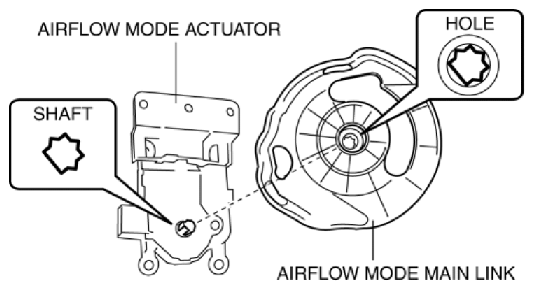

    Fig 1: Aligning Airflow Mode Main Link Installation Hole With Airflow Mode Actuator Shaft
    G10910288Courtesy of MAZDA MOTORS CORP.
