Air Intake Actuator Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

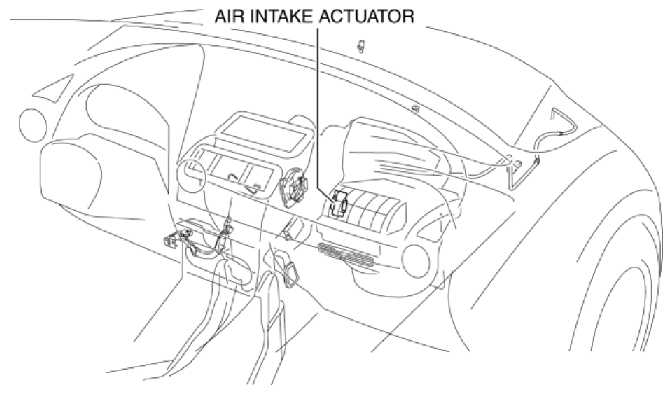

Fig 1: Identifying Air Intake Actuator (Full-Auto Air Conditioner)
G10910274Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the air intake actuator connector.

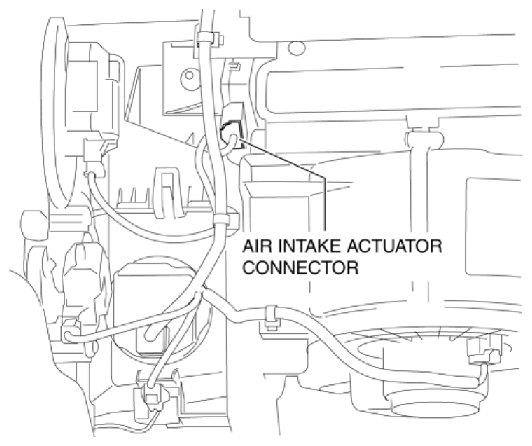

    Fig 2: Identifying Air Intake Actuator Connector
    G10910275Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

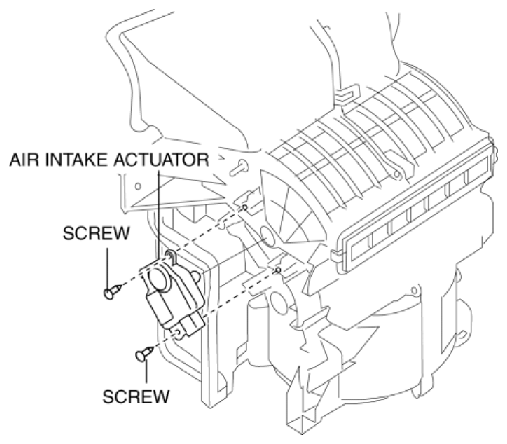

    Fig 3: Removing Air Intake Actuator Screws
    G10910276Courtesy of MAZDA MOTORS CORP.
  5. Remove the air intake actuator.
  6. Install in the reverse order of removal.
