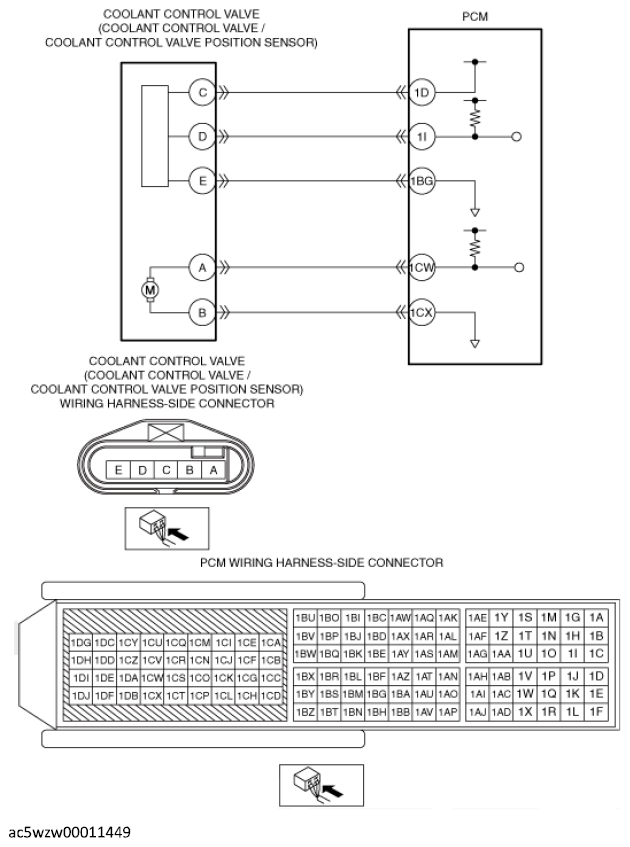

Home >> Mazda >> 2021 >> CX-3 AWD >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic - Engine Control (4 Of 5) >> DTC P2B60-00: Coolant Control Valve Position Sensor Circuit Range/Performance >> System Wiring Diagram
