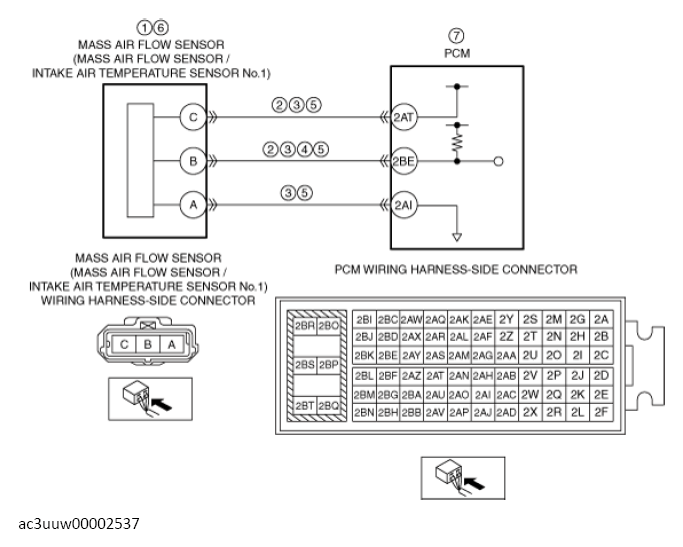

Home >> Mazda >> 2021 >> CX-3 AWD >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic - Engine Control (1 Of 5) >> DTC P0100-00: Mass Air Flow Sensor Circuit Performance Problem >> System Wiring Diagram
