Symptom Troubleshooting - Power Window Systems
>>

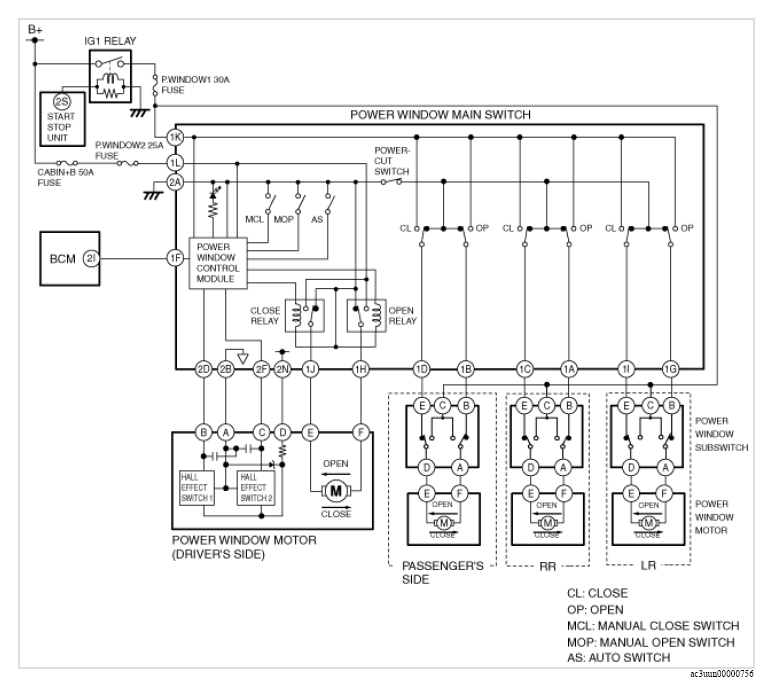

Power Window System Wiring Diagram
Power Window System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
