Front Lower Arm Bushing Removal Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front lower arm bushing using the SSTs and the press.

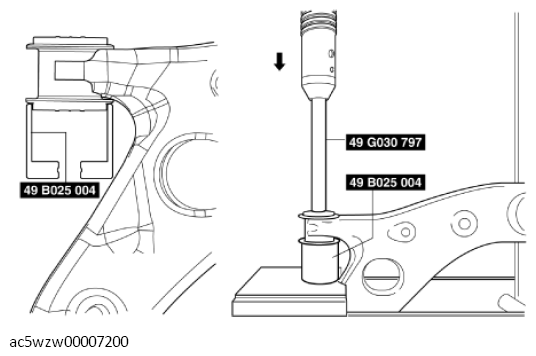

    Fig 1: Front Lower Arm Bushing Using SST
    G11428789Courtesy of MAZDA MOTORS CORP.
  2. Wipe off any dirt of oil on the front lower arm bushing installation area.
