Joint Cover Installation Note

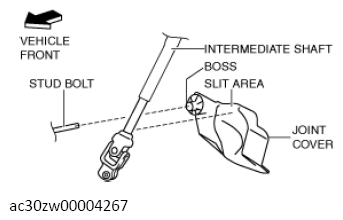

  1. Assemble the boss of the joint cover to the stud bolt on the vehicle side.
    G13716072Courtesy of MACK TRUCKS, INC.

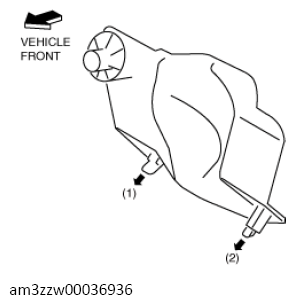

  2. Engage the tabs in the order of arrows (1) and (2) shown in the figure.
    G13716073Courtesy of MACK TRUCKS, INC.
