Intermediate Shaft Installation Note

  1. Align the intermediate shaft with the alignment marks on the steering column and steering gear (pinion) made before removing the intermediate shaft and install the intermediate shaft.
    G13177043Courtesy of MACK TRUCKS, INC.
    NOTE:
    • When newly replacing the intermediate shaft, place alignment marks on the new part in the same position as the removed intermediate shaft.
    G13177044Courtesy of MACK TRUCKS, INC.

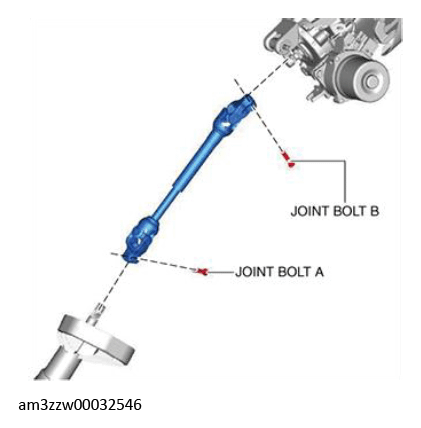

  2. Install the joint bolts in the order of joint bolts B and A.
    G13177045Courtesy of MACK TRUCKS, INC.
  3. Verify that joint bolt B flange is seated correctly.
    G13177046Courtesy of MACK TRUCKS, INC.
  4. Verify that joint bolt A is inserted into the groove of the steering gear (pinion).
    G13177047Courtesy of MACK TRUCKS, INC.
