TPMS Reminder Reset - Procedure 04

NOTE: This vehicle is equipped with an Indirect TPM System. No tire pressure sensors are installed on the wheels. For vehicles with a Direct TPMS, see TPMS REMINDER RESET - PROCEDURE 05 .

Perform the tire pressure monitoring system initialization when any of the following occurs:

Tire pressures have been adjusted to be different than the currently monitored specification
Tires or wheels have been replaced
Tires have been rotated
DSC HU/CM replaced or its connector is disconnected
Battery replaced or disconnected
The TPMS warning light is illuminated

Park the vehicle on level ground.
Adjust all four tire pressures to specification while the tires are cold.
Switch the ignition ON.
Press and hold the TPMS Set Switch until the warning light in the instrument cluster flashes twice and a beep sound is heard once. See Fig 1.
When the TPMS initialization is performed, learning initiates. Learning is completed by driving the vehicle for 20 minutes.

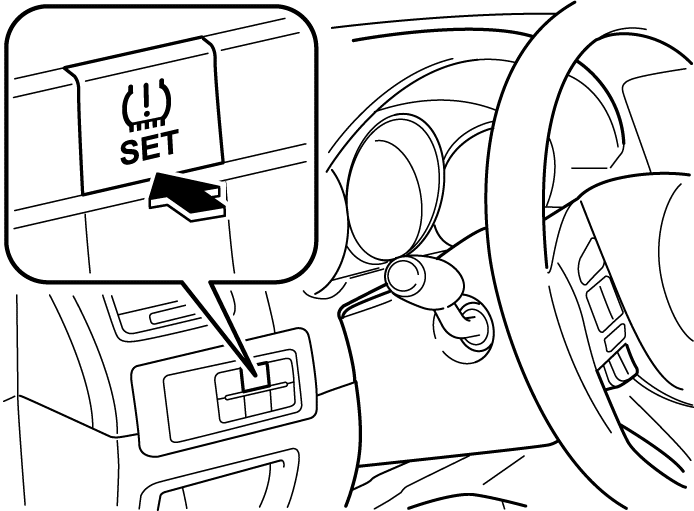

Fig 1: TPMS Set Switch (Typical)

Courtesy of MAZDA MOTORS CORP.
