Part-side connector

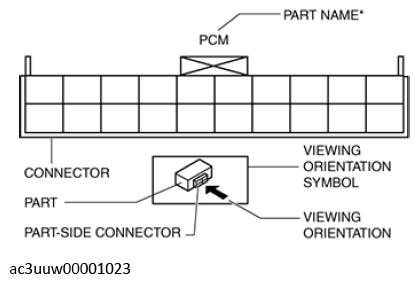

The viewing orientation for part-side connectors is from the terminal side.

G12245941

Courtesy of MAZDA MOTORS CORP.

*: Part names are shown only when there are multiple connector drawings.
