Air Separate Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING:

Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counter clockwise to the first stop. Step back while the pressure escapes.
When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the air cleaner, air hose and fresh-air duct component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove using the procedure shown in the figure.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

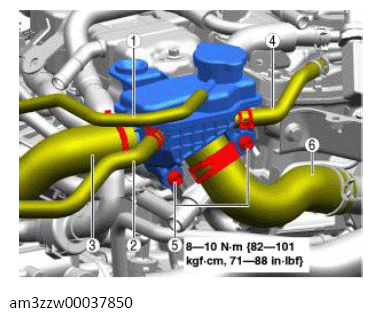

Fig 1: Upper Radiator Hose, Water Hoses No. 1, No. 2, No. 3, No. 4 And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Water hose No. 1 (See WATER HOSE INSTALLATION NOTE .)
2	Water hose No. 2 (See WATER HOSE INSTALLATION NOTE .)
3	Upper radiator hose
4	Water hose No. 3 (See WATER HOSE INSTALLATION NOTE .)
5	Bolt
6	Water hose No. 4 (See WATER HOSE INSTALLATION NOTE .)
