Oil Shower Pipe Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil shower pipe in the order shown in the figure.

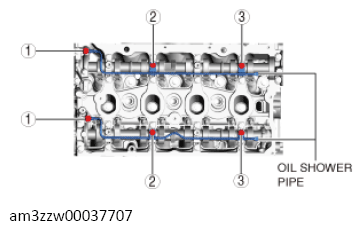

Fig 1: Oil Shower Pipe Bolts Tightening Sequence
G13713214Courtesy of MAZDA MOTORS CORP.
