Plug Hole Plate Removal/Installation: Installation
WARNING: This page is about a different variant/trim than selected.

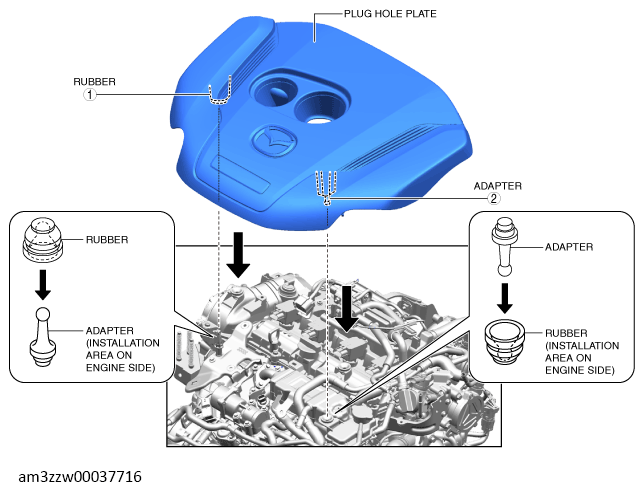

- Press the plug hole plate in the order of the numbers shown in the figure and insert the rubber and adapters into the engine.
 Courtesy of MAZDA MOTORS CORP.
|

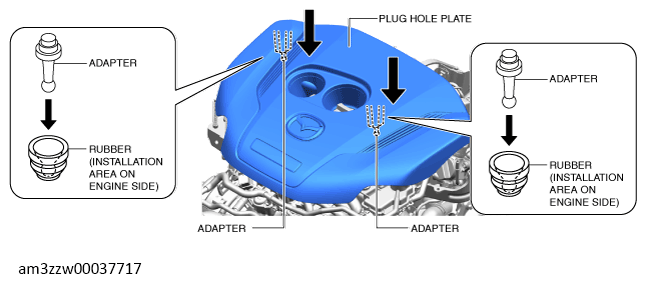

- While simultaneously pressing the areas indicated by the arrows on the plug hole plate, insert the adapters into the rubber on the engine.
 Courtesy of MAZDA MOTORS CORP.
|
