Cooling System Location Index
WARNING: This page is about a different variant/trim than selected.

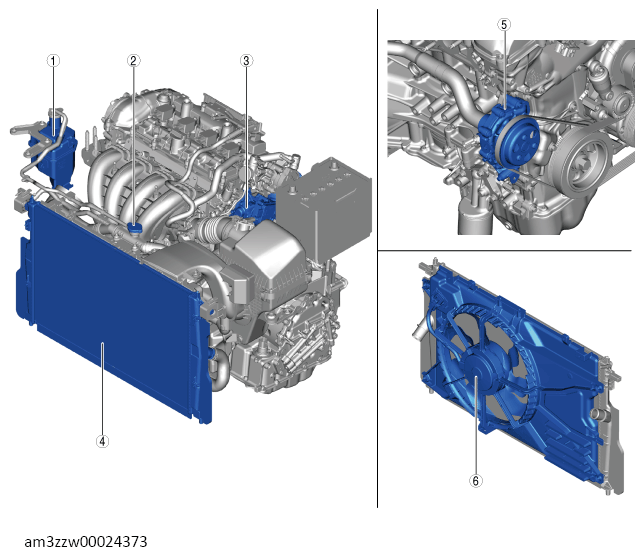

PART DESCRIPTION
| 1 | Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION .) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .) |
| 2 | Cooling system cap (See COOLING SYSTEM CAP INSPECTION .) |
| 3 | Coolant control valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION .) (See COOLANT CONTROL VALVE INSPECTION .) |
| 4 | Radiator (See ENGINE COOLANT PROTECTION INSPECTION .) (See ENGINE COOLANT REPLACEMENT .) (See ENGINE COOLANT LEAKAGE INSPECTION .) (See RADIATOR REMOVAL/INSTALLATION .) |
| 5 | Water pump (See WATER PUMP REMOVAL/INSTALLATION .) |
| 6 | Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION .) (See COOLING FAN MOTOR INSPECTION .) |
