Coolant Control Valve Removal Note

WARNING: This page is about a different variant/trim than selected.

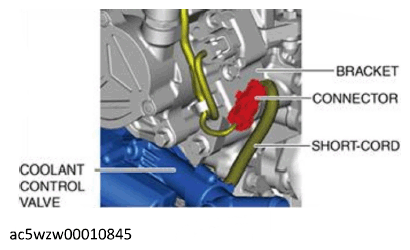

  1. Disconnect the connector shown in the figure.
    G12184191Courtesy of MAZDA MOTORS CORP.

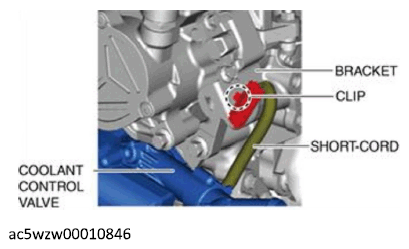

  2. Remove the clip shown in the figure.
    G12184192Courtesy of MAZDA MOTORS CORP.
  3. Remove the coolant control valve.
  4. When replacing the engine coolant control valve, remove ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
