Insulator (middle) Installation Note
WARNING: This page is about a different variant/trim than selected.

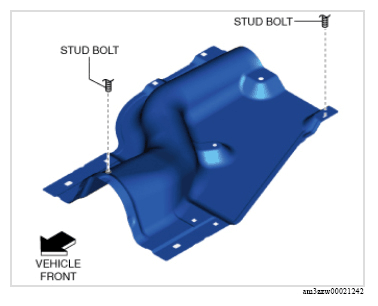

- Align the stud bolts shown in the figure with the insulator (middle) and install.
2WD
 Courtesy of MAZDA MOTORS CORP.
|
AWD
 Courtesy of MAZDA MOTORS CORP.
|
- Tighten the nuts to the specified torque.
