AWD Solenoid Inspection

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Disconnect the AWD solenoid connector.

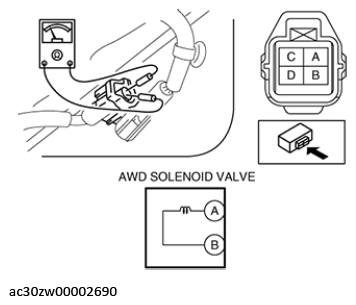

Measure resistance between AWD solenoid connector terminals A and B.

Courtesy of MAZDA MOTORS CORP.
- If the resistance is not within the specification, replace the coupling component. (See COUPLING COMPONENT REMOVAL/INSTALLATION (US) .)
  4WD solenoid resistance

  2.2-2.6 ohms (Temperature at 20°C {68°F})
