Engine Oil Solenoid Valve Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
| Bolt Quantity: 3 Location of use: Engine oil solenoid valve |
Gasket Quantity: 1 Location of use: Engine oil solenoid valve |
Oil and Chemical Type
| Silicone sealant Type: TB1207B or equivalent |
Engine oil Type: Recommended oil |
WARNING:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.

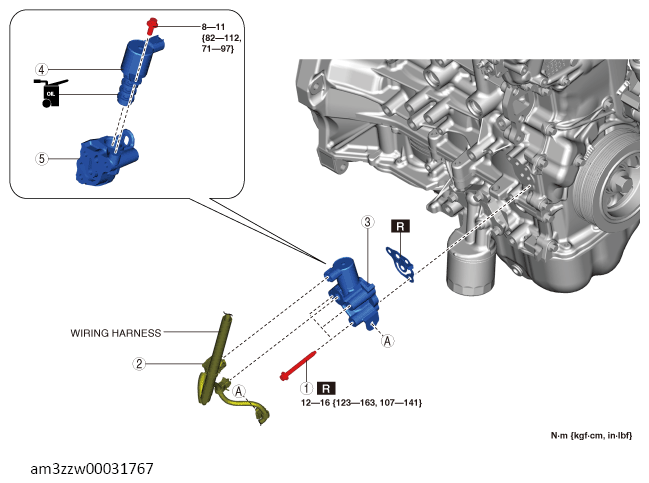

PART DESCRIPTION
| 1 | Bolt |
| 2 | Engine oil solenoid valve connector |
| 3 | Engine oil solenoid valve component |
| 4 | Engine oil solenoid valve (See ENGINE OIL SOLENOID VALVE REMOVAL NOTE .) (See ENGINE OIL SOLENOID VALVE INSTALLATION NOTE .) |
| 5 | Spacer |
