Fuel Tank Side (AWD)
WARNING: This page is about a different variant/trim than selected.

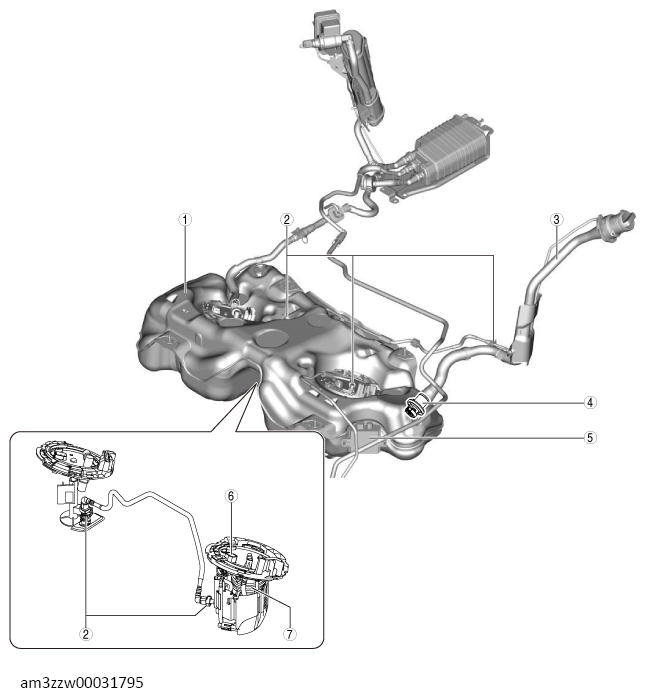

PART DESCRIPTION
| 1 | Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [(VIN M) (US)] .) (See FUEL TANK INSPECTION [(VIN M) (US)] .) |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 3 | Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 4 | Non-return valve (See NON-RETURN VALVE INSPECTION [(VIN M) (US)] .) |
| 5 | Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [(VIN M) (US)] .) (See FUEL PUMP CONTROL MODULE INSPECTION [(VIN M) (US)] .) |
| 6 | Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 7 | Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [(VIN M) (US)] .) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [(VIN M) (US)] .) (See FUEL PUMP UNIT INSPECTION [(VIN M) (US)] .) |
