Boot Band Disassembly Note

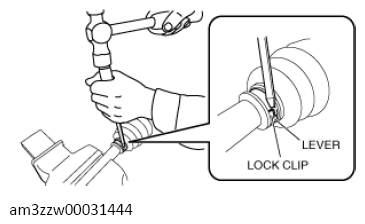

  1. Using a flat chisel and hammer, lightly tap the lever of the boot band to disconnect the lock clip.
    G13557996Courtesy of MAZDA MOTORS CORP.
  2. Remove the boot band using pliers.
    G11273993Courtesy of MAZDA MOTORS CORP.
