Trunk End Trim Removal/Installation: Sedan-4SD

  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)

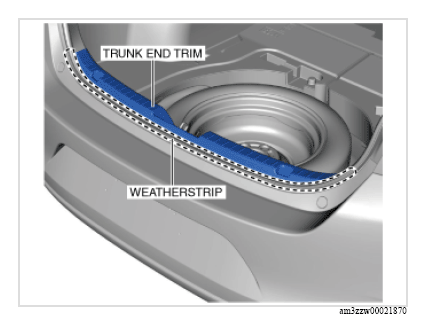

  2. Partially peel back the weatherstrip.
    G13179549Courtesy of MAZDA MOTORS CORP.

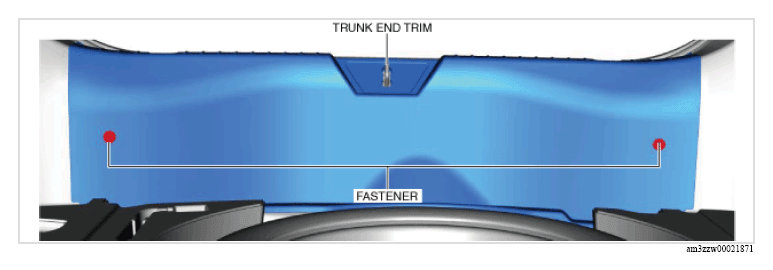

  3. Remove the fasteners.
    G13179550Courtesy of MAZDA MOTORS CORP.

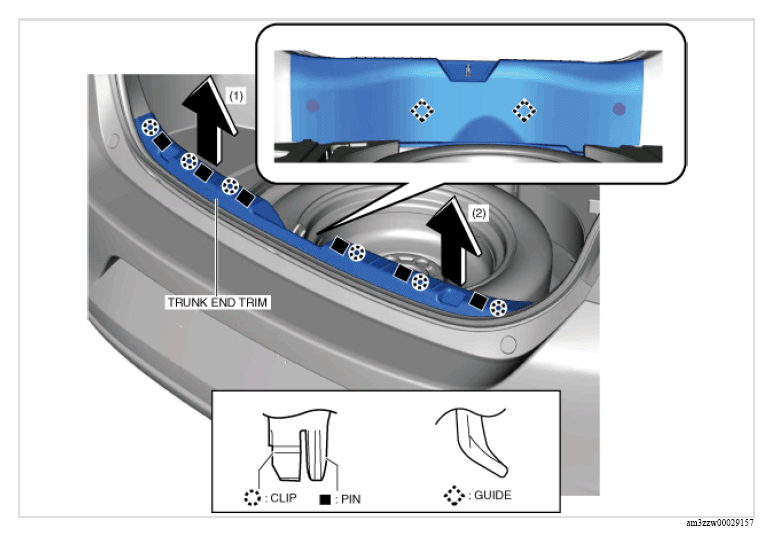

  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the clips, pins, and guides.
    G13179551Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
