Rear Brake Caliper Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the adjusting nut. (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)
Disconnect the brake hose from the caliper. (See REAR BRAKE HOSE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

After installation, pump the brake pedal a few times and inspect the following:

The disc pad projection is securely assembled to the piston groove.
Parking brake lever stroke (See PARKING BRAKE LEVER INSPECTION .)

Brake drag

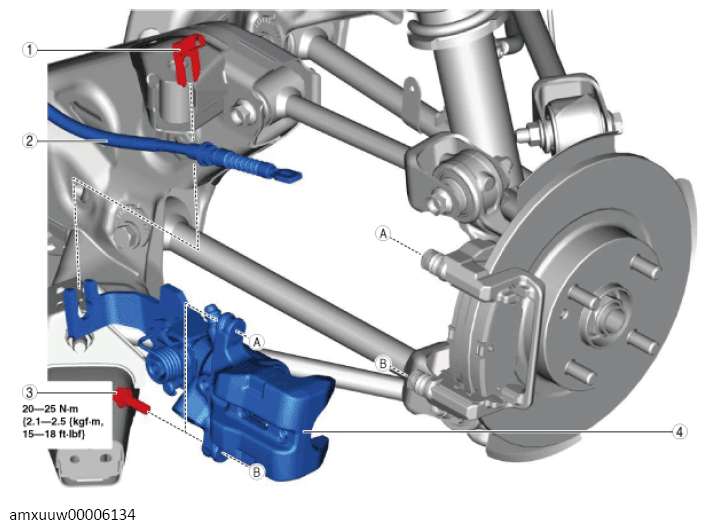

Fig 1: Rear Brake Caliper Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Clip (See Clip Installation Note .)
2	Rear parking brake cable
3	Bolt
4	Rear brake caliper (See Rear Brake Caliper Installation Note .)
