Ambient Temperature Sensor Removal/Installation (Auto A/C)

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)

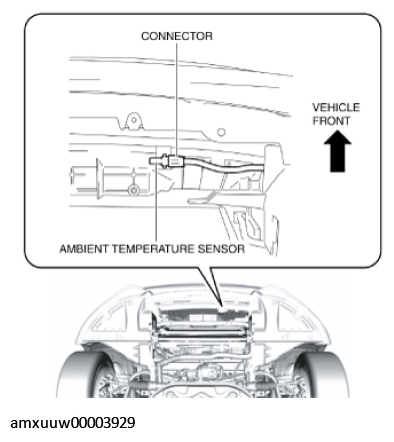

  3. Disconnect the connector.
    G11276291Courtesy of MAZDA MOTORS CORP.

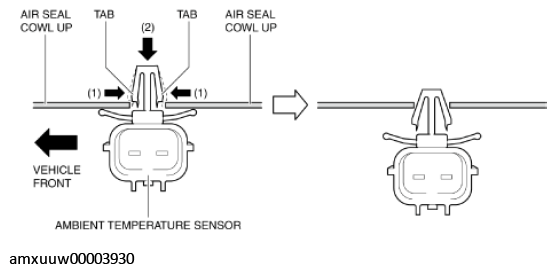

  4. While pressing the clip tabs of the ambient temperature sensor in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the air seal cowl up.
    G11276292Courtesy of MAZDA MOTORS CORP.
  5. Remove the ambient temperature sensor.
  6. Install in the reverse order of removal.
