Fuel-Filler Pipe Removal/Installation
>>
Joint Hose Installation Note
Joint Hose Installation Note

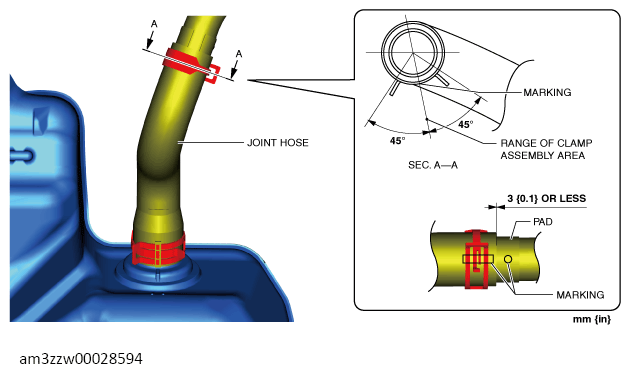

Install the joint hose as shown in the illustration.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
