Oil Shower Pipe Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten the oil shower pipe installation bolts.
  2. Install the oil shower pipe in the order shown in the figure.

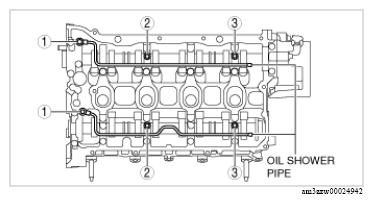

    Fig 1: Oil Shower Pipe Installation Bolts Tightening Sequence
    G13174429Courtesy of MAZDA MOTORS CORP.
