Front Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

SPECIAL SERVICE TOOL DESCRIPTION

Mazda SST number Global SST number
49 B011 105 - Adapter	Courtesy of MAZDA MOTORS CORP.	49 UN20 5072 205-072 Holder	Courtesy of MAZDA MOTORS CORP.	49 G028 205 - Oil seal installer	Courtesy of MAZDA MOTORS CORP.

Replacement Part

Front oil seal
Quantity: 1
Location of use: Engine front cover

Oil and Chemical Type

Engine oil
Type: Recommended oil

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

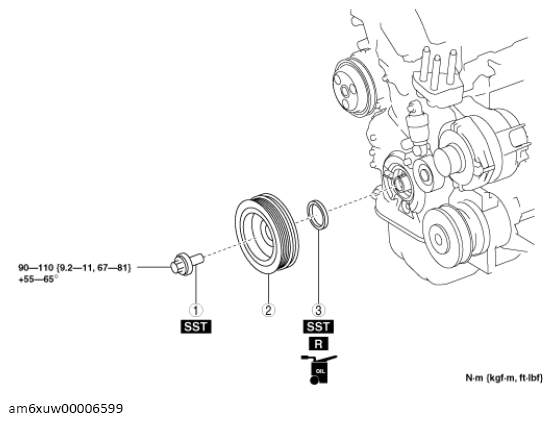

Fig 1: Front Oil Seal Components With Torque Specification - SKYACTIV-G (Without Cylinder Deactivation; US)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note .) (See Crankshaft Pulley Lock Bolt Installation Note .)
2	Crankshaft pulley
3	Front oil seal (See Front Oil Seal Removal Note .) (See Front Oil Seal Installation Note .)
