Engine Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the front under cover No. 1 and No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove the front splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
  5. Drain the transaxle oil (MTX) or ATF (ATX). (See MANUAL TRANSAXLE OIL REPLACEMENT [C66M-R] (MTX).)
  6. Remove the front wheels and tires. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
  7. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
  8. Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
    • Air hose
    • Air cleaner cover
    • Air cleaner element
    • Air cleaner case
    • Fresh-air duct
    • Resonance chamber
  9. Remove the bolts and nut shown in the figure, and set the wiring harness aside.
    Fig 1: Wiring Harness Bolts And Nut With Torque Specification
    G13174265Courtesy of MAZDA MOTORS CORP.
  10. Disconnect the connector.
    G13174266Courtesy of MAZDA MOTORS CORP.
  11. Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION .)
  12. Disconnect the selector cable. (ATX) (See SELECTOR CABLE REMOVAL/INSTALLATION [(US)] .)
  13. Disconnect the control cable. (MTX) (See CONTROL CABLE REMOVAL/INSTALLATION [C66M-R] .)
  14. Remove the clutch release cylinder with the pipe still connected. (MTX) (See CLUTCH RELEASE CYLINDER REMOVAL/INSTALLATION [C66M-R] .)
  15. Disconnect the vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION .)
  16. Disconnect the evaporative hose. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
  17. Disconnect the fuel hose. (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
  18. Disconnect the heater hoses. (See A/C UNIT REMOVAL/INSTALLATION [(US)] .)
  19. Disconnect the upper radiator hose from the engine side.
  20. Disconnect the lower radiator hose from the radiator.
  21. Disconnect the lower radiator hose clip.
  22. Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  23. Remove the TWC installation nuts (exhaust manifold side) and secure the TWC using wire or rope so that it is out of the way. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
  24. Disconnect the drive shaft from the transaxle side and set the drive shaft out of the way. (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(US)] .)
  25. Remove the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(US)] .)
  26. Set the cooler hose (LO) aside. (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  27. Remove the A/C compressor with the cooler hose still connected and secure it using wire or rope so that it is out of the way. (See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  28. Remove in the order indicated in the table.

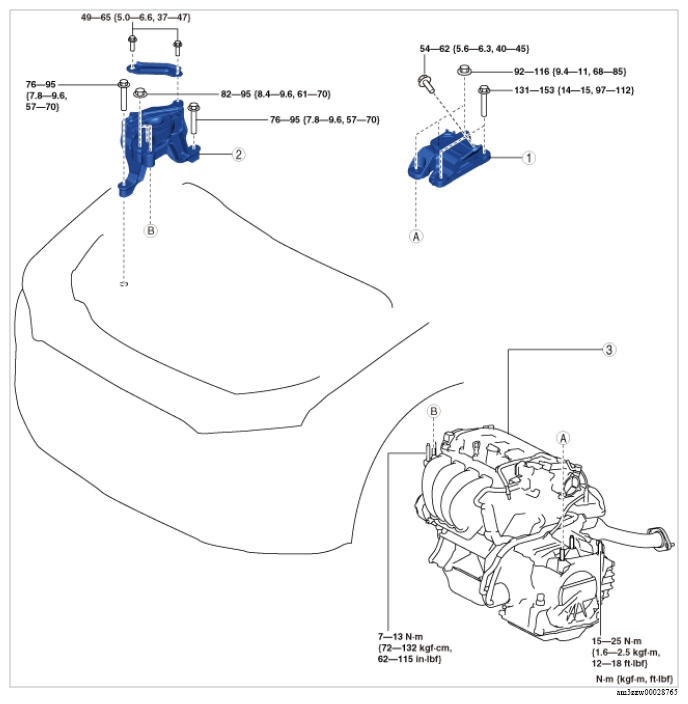

    Fig 2: Engine Components With Torque Specification - SKYACTIV-G (Without Cylinder Deactivation; US)
    G13174267Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No. engine mount bracket and rubber
    (See Engine Installation .)
    2 No. engine mount
    (See Engine Installation .)
    3 Engine, transaxle
