No. 1 Engine Mount (AWD): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

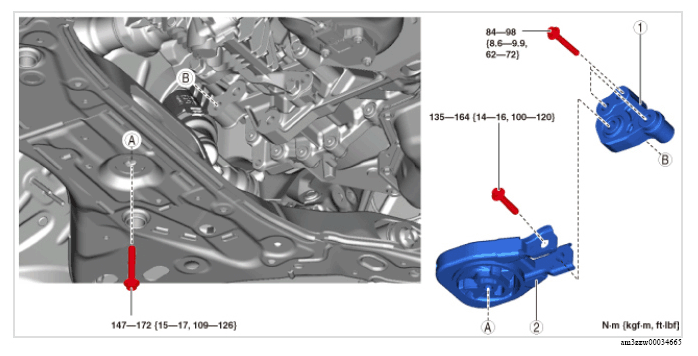

    Fig 1: No. 1 Engine Mount (AWD) Components With Torque Specification
    G13174240Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No. 1 engine mount bracket
    (See No. 1 engine mount installation note (AWD) .)
    2 No. 1 engine mount rubber
    (See No. 1 engine mount installation note (AWD) .)
