Joint Hose Installation Note

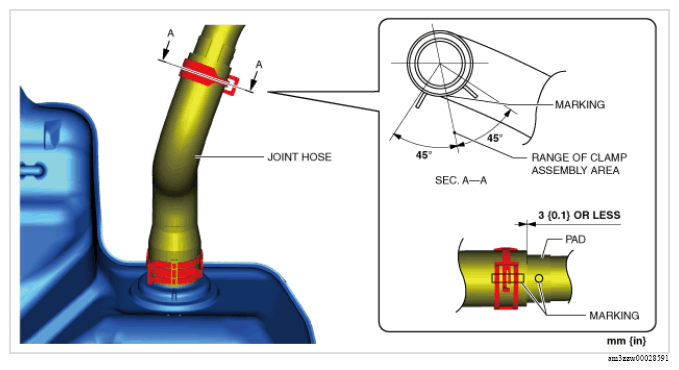

  1. Install the joint hose as shown in the figure.
    G12726812Courtesy of MAZDA MOTORS CORP.
