Connectivity Master Unit (CMU) Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

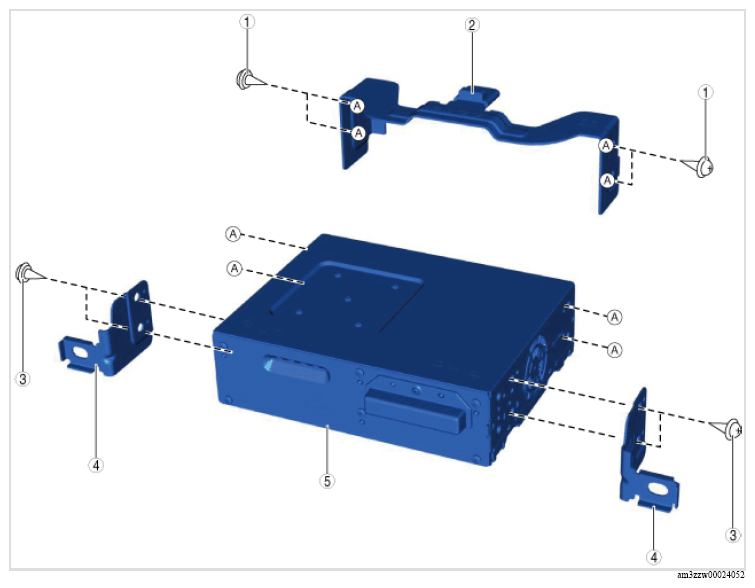

    G13179813Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Bracket A
    3 Screw
    4 Bracket B
    5 CMU
  2. Assemble in the reverse order of disassembly.
