Audio Amplifier Removal/Installation

  1. Remove the front seat under cover. (with power seat) (See FRONT SEAT REMOVAL/INSTALLATION [(US)] .)
  2. Slide the seat rearward (RH).
  3. Remove the fastener.

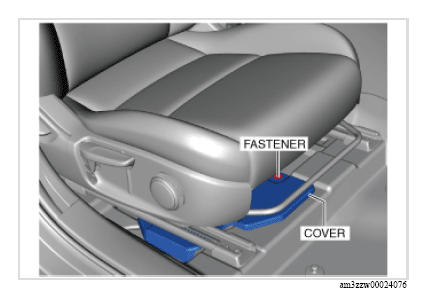

    G13179784Courtesy of MAZDA MOTORS CORP.
  4. Slide the seat forward (RH).
  5. Remove the fastener.

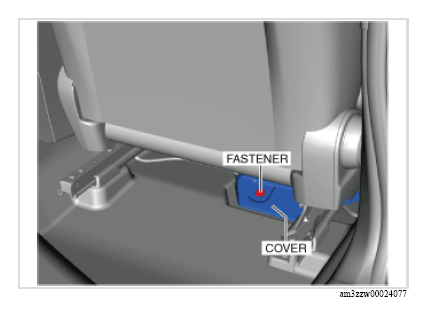

    G13179785Courtesy of MAZDA MOTORS CORP.
  6. Remove the cover.
  7. Remove the bolt.

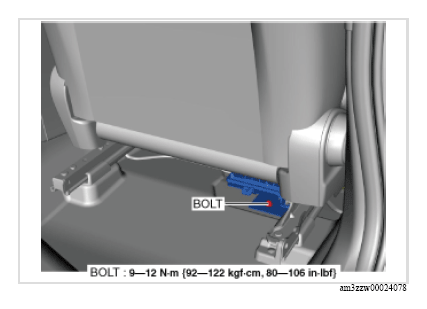

    Fig 1: Seat Forward (RH) Bolt With Torque Specification
    G13179786Courtesy of MAZDA MOTORS CORP.
  8. Slide the seat rearward (RH).
  9. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  10. Remove the bolts.
    Fig 2: Seat Rearward (RH) Bolts With Torque Specification
    G13179787Courtesy of MAZDA MOTORS CORP.

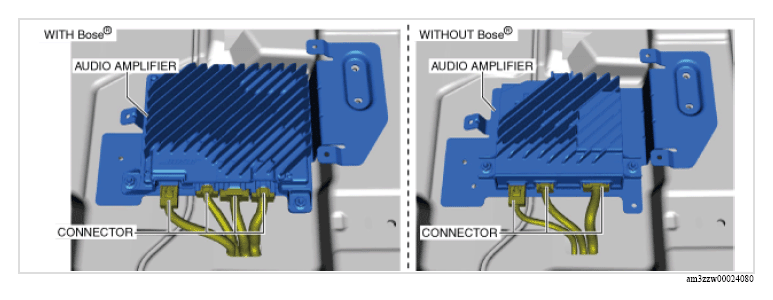

  11. Disconnect the connectors.
    G13179788Courtesy of MAZDA MOTORS CORP.
  12. When removing the bracket, perform the following procedure:
    1. Remove the nuts.

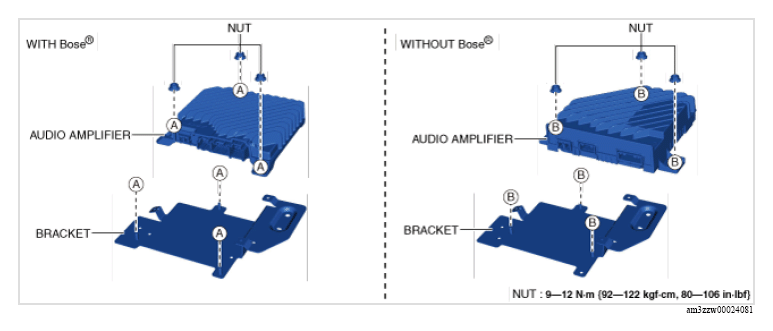

      Fig 3: Bracket Nuts With Torque Specification
      G13179789Courtesy of MAZDA MOTORS CORP.
    2. Remove the bracket.
  13. Install in the reverse order of removal.
