Front Airflow Mode Actuator Installation
>>
Airflow Mode Main Link Installation Note
Airflow Mode Main Link Installation Note

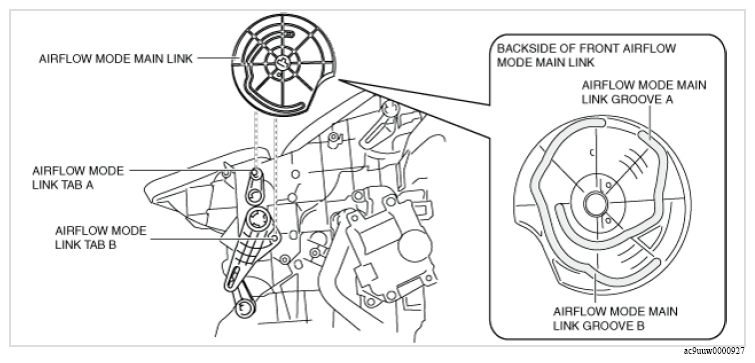

When installing the airflow mode main link, verify that airflow mode link tab A is installed in airflow mode main link groove A and airflow mode link tab B is installed in airflow mode main link groove B
.
Courtesy of MAZDA MOTORS CORP.
