Ejector Side: Notes

  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

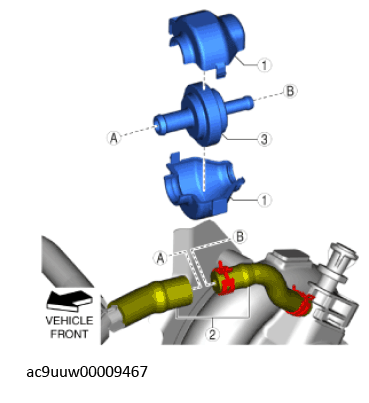

    G11436237Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Cover
    2 Evaporative hose
    3 Check valve (ejector side)
    (See Check valve (ejector side) installation note .)
  3. Install in the reverse order of removal.
