360° View Monitor Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts.
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    6. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Partially peel back the floor covering.
  4. Remove the foot support. (See FOOT SUPPORT REMOVAL/INSTALLATION .)
  5. Remove the nuts.

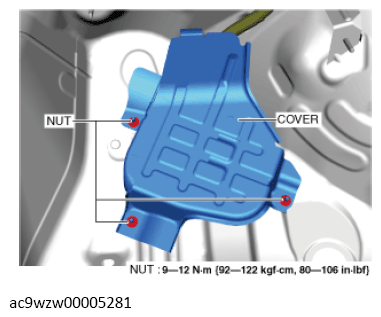

    Fig 1: Cover And Nuts With Torque Specification
    G13450173Courtesy of MAZDA MOTORS CORP.
  6. Remove the cover.
  7. Disconnect the connector.

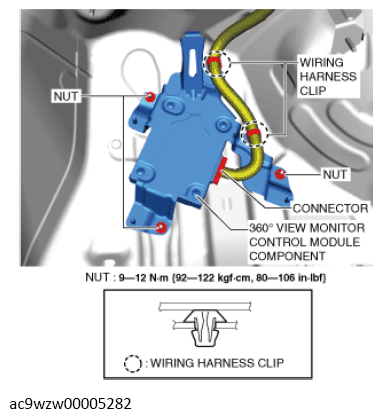

    Fig 2: Wiring Harness Clips, Connector, 360° View Monitor Control Module Component And Nuts With Torque Specification
    G13450174Courtesy of MAZDA MOTORS CORP.

  8. Remove the wiring harness clips.
  9. Remove the nuts.
  10. Remove the 360° view monitor control module component.
  11. Remove the screws.

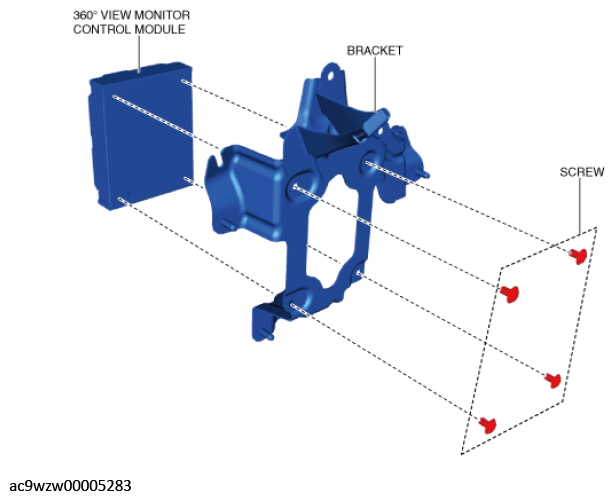

    G12265220Courtesy of MAZDA MOTORS CORP.
  12. Remove the 360° view monitor control module from the bracket.
  13. Install in the reverse order of removal.
  14. Perform the 360° view monitor system aiming. (See 360° VIEW MONITOR SYSTEM AIMING .)
