Pm Sensor Removal/Installation: AWD: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the floor under cover (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)

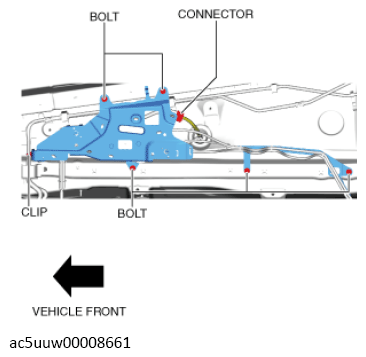

  3. Remove the clip.
    G13119364Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Disconnect the connector.

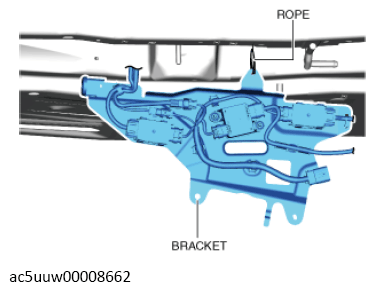

  6. Suspend module bracket using a rope as shown in the figure.
    G13119365Courtesy of MAZDA MOTORS CORP.

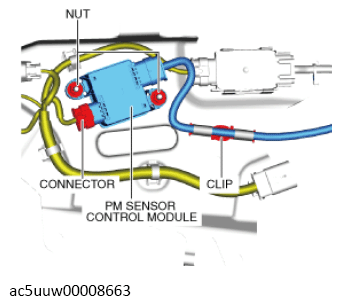

  7. Remove the nuts.
    G13119366Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the connector.
  9. Remove the clip.
  10. Remove the PM sensor control module.

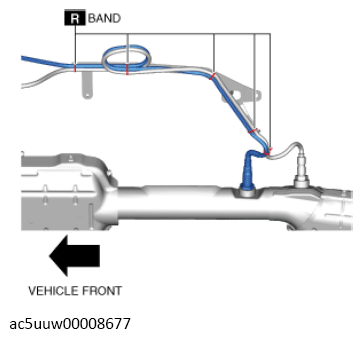

  11. Cut the bands.
    G13119384Courtesy of MAZDA MOTORS CORP.

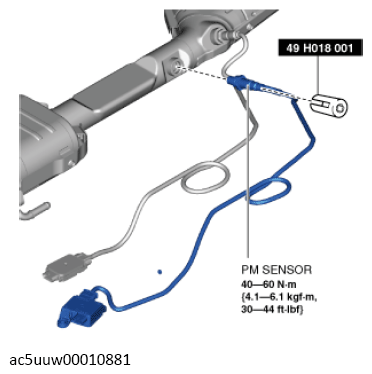

  12. Remove the PM sensor using the SST.
Fig 1: PM Sensor Bolt With Torque Specification
G13119385Courtesy of MAZDA MOTORS CORP.
