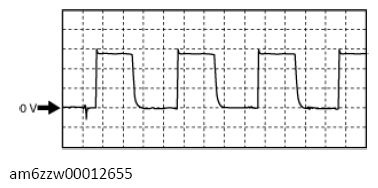

Generator field coil control signal

G13119351

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1EI (+)-body ground (-)
Oscilloscope setting
500 mV/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
