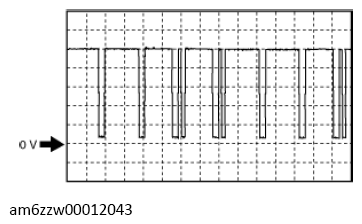

CMP (G+) signal

G13119146

Courtesy of MAZDA MOTORS CORP.

PCM terminals

1A (+)-body ground (-)
Oscilloscope setting
1 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
