NOx SENSOR REMOVAL/INSTALLATION
>>
NOx sensor No. 1
>>
Band installation note
Band installation note
Install bands as shown in the figure.

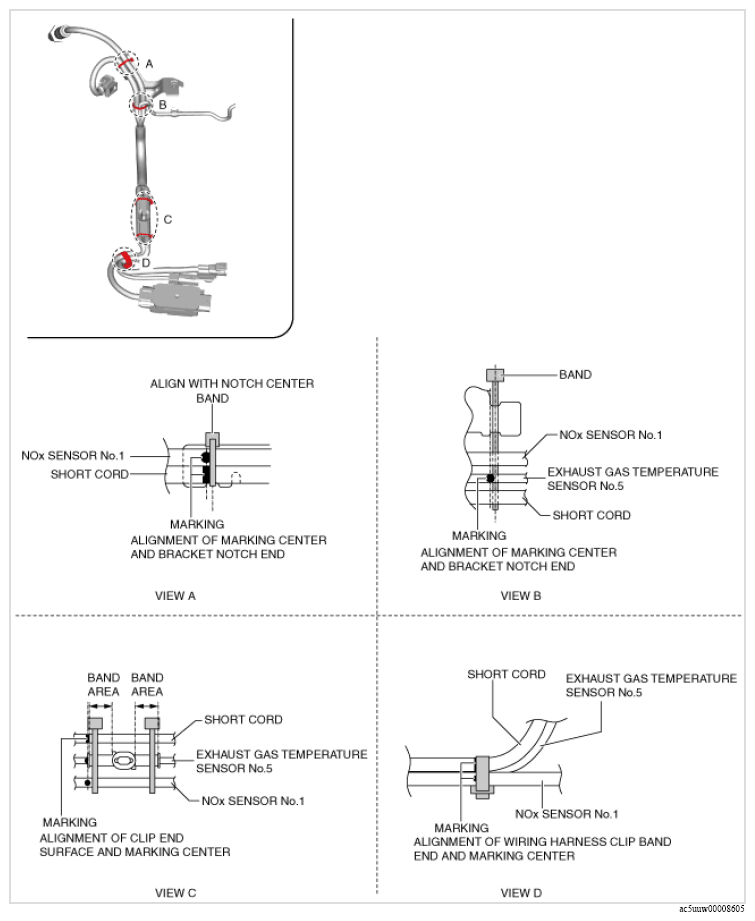

2WD
Courtesy of MAZDA MOTORS CORP.

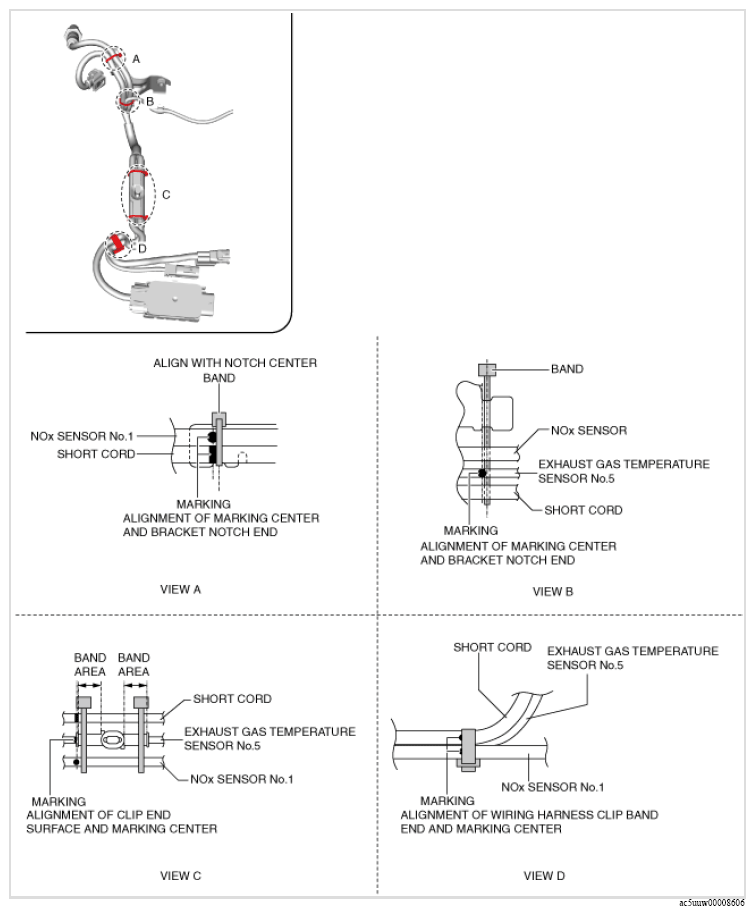

AWD
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
