Exhaust Gas Temperature Sensor No. 2

WARNING:

• A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

• Do not allow flammable objects such as the taping for bundling wiring harness to come into contact with the catalytic converter.
• Perform exhaust gas temperature sensor removal/installation only when inspection or replacement is required, such as when DTCs for the sensor are displayed, because it may cause exhaust gas leaks.
• If removal or installation/removal is performed, always verify that there is no exhaust gas leak after reinstallation.

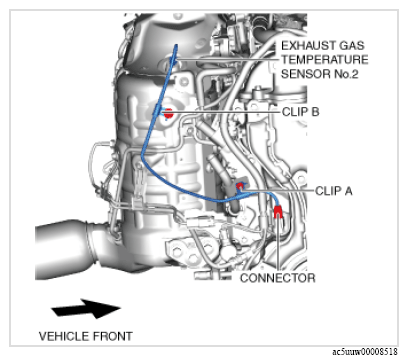

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Lift up the vehicle.
3. Remove the following parts:
   1. Engine cover (See ENGINE COVER REMOVAL/INSTALLATION .)
   2. Insulator (See TIMING CHAIN REMOVAL/INSTALLATION .)
   3. Front splash shield (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION .)
4. Disconnect the exhaust gas temperature sensor No. 2 connector.
5. Remove the clip A from the bracket.

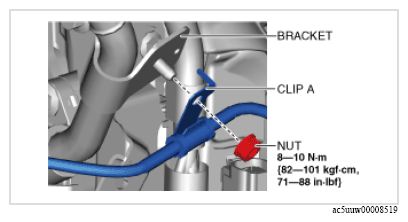

   Fig 1: Bracket, Clip And Nut With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
6. Remove the clip B from the catalytic converter.

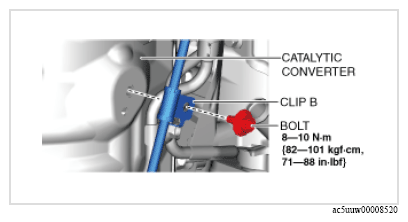

   Fig 2: Catalytic Converter, Clip And Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
7. Remove the exhaust gas temperature sensor No. 2.

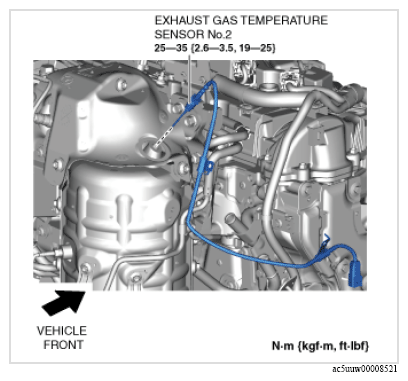

   Fig 3: Exhaust Gas Temperature Sensor No. 2 Bolt With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
8. Install in the reverse order of removal.
