Drive Plate Installation Bolts Installation Note

Set the SST against the drive plate.

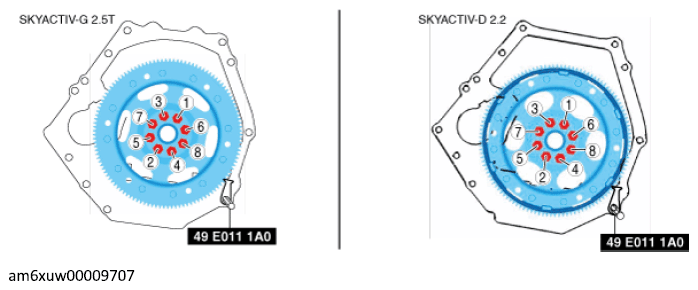

Fig 1: Setting SST Against Drive Plate
Courtesy of MAZDA MOTORS CORP.
Tighten the new drive plate installation bolts uniformly in two or three steps in the order shown in the figure below.
Tightening torque

108-116 N.m {11.1-11.8 kgf.m, 80-85 ft.lbf}
