Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
On-Board Diagnostics - Dynamic Stability Control
>>
DSC System Wiring Diagram (Dynamic Stability Control (DSC))
DSC System Wiring Diagram (Dynamic Stability Control (DSC))

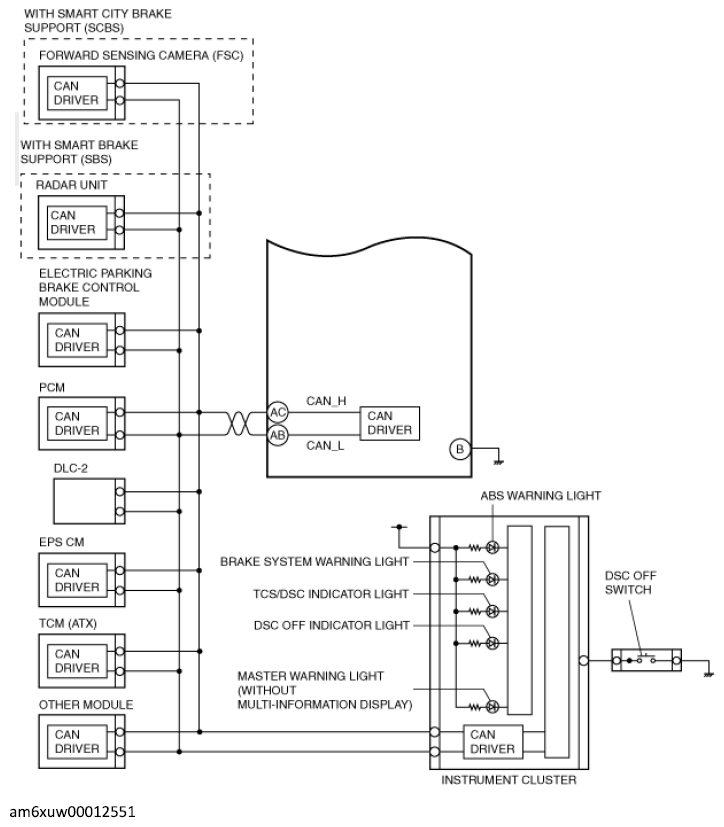

Fig 1: DSC System Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

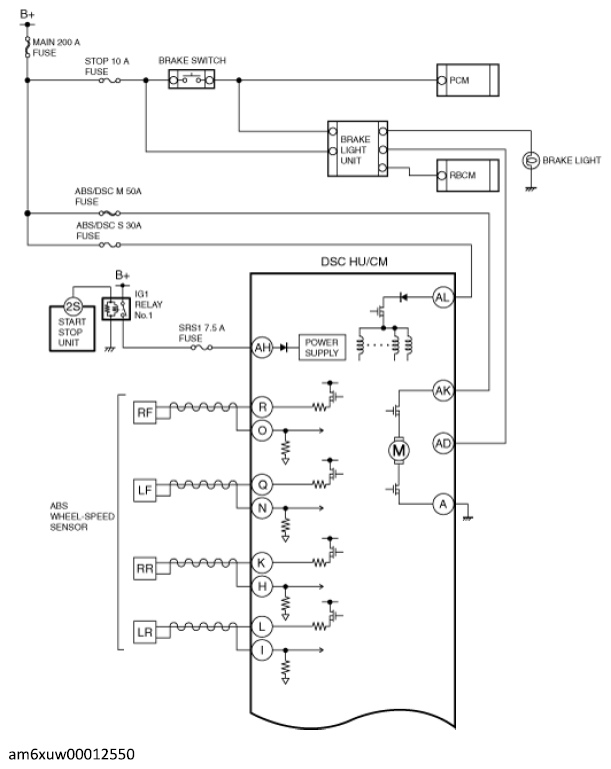

Fig 2: DSC System Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
