Troubleshooting Procedure

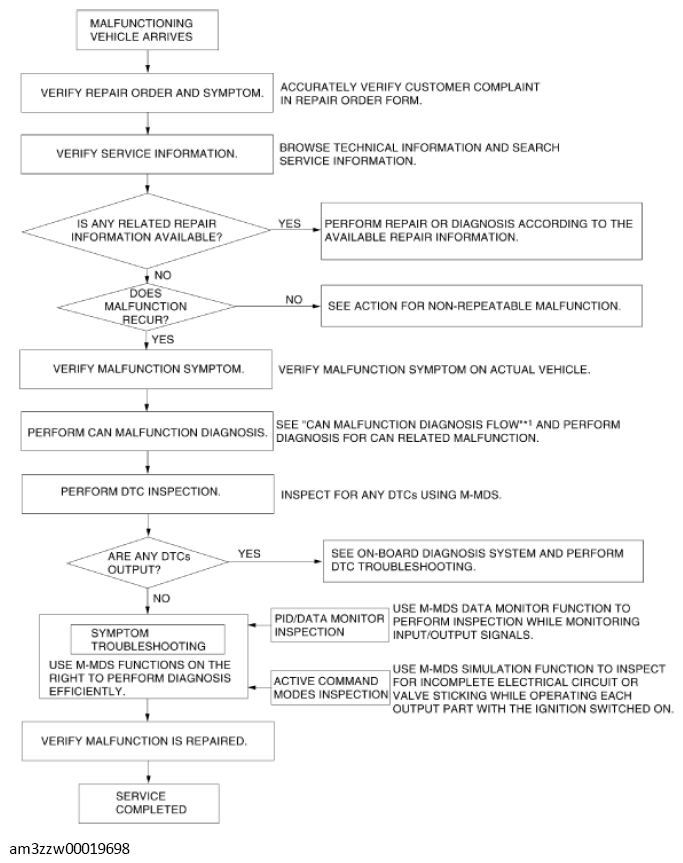

Fig 1: Foreword Troubleshooting Procedure Flow Chart - Traffic Sign Recognition System (TSR)
G11432143Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5] .) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T] .)
