Back-up Ring Installation Note

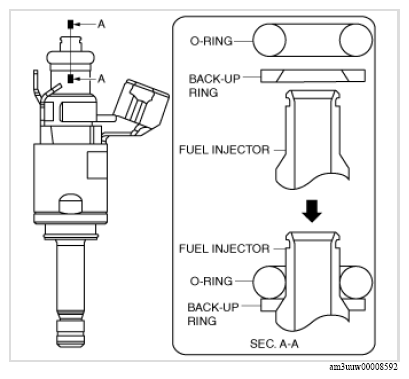

  1. Install the back-up ring, making sure it is installed in the right direction.
    G13108432Courtesy of MAZDA MOTORS CORP.
  2. After installing the back-up ring, verify that it is installed correctly.
    G09074968Courtesy of MAZDA MOTORS CORP.
