Air Cleaner Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

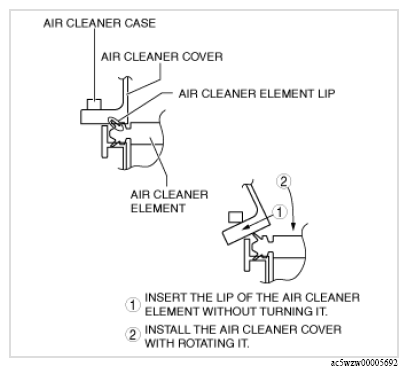

  1. Install the air cleaner cover as shown in the figure.
    G13108246Courtesy of MAZDA MOTORS CORP.

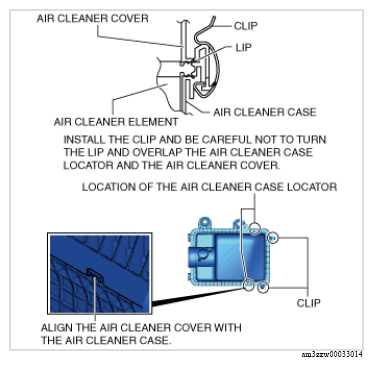

  2. Secure the air cleaner cover and the air cleaner case with the clip.
    G13174900Courtesy of MAZDA MOTORS CORP.
